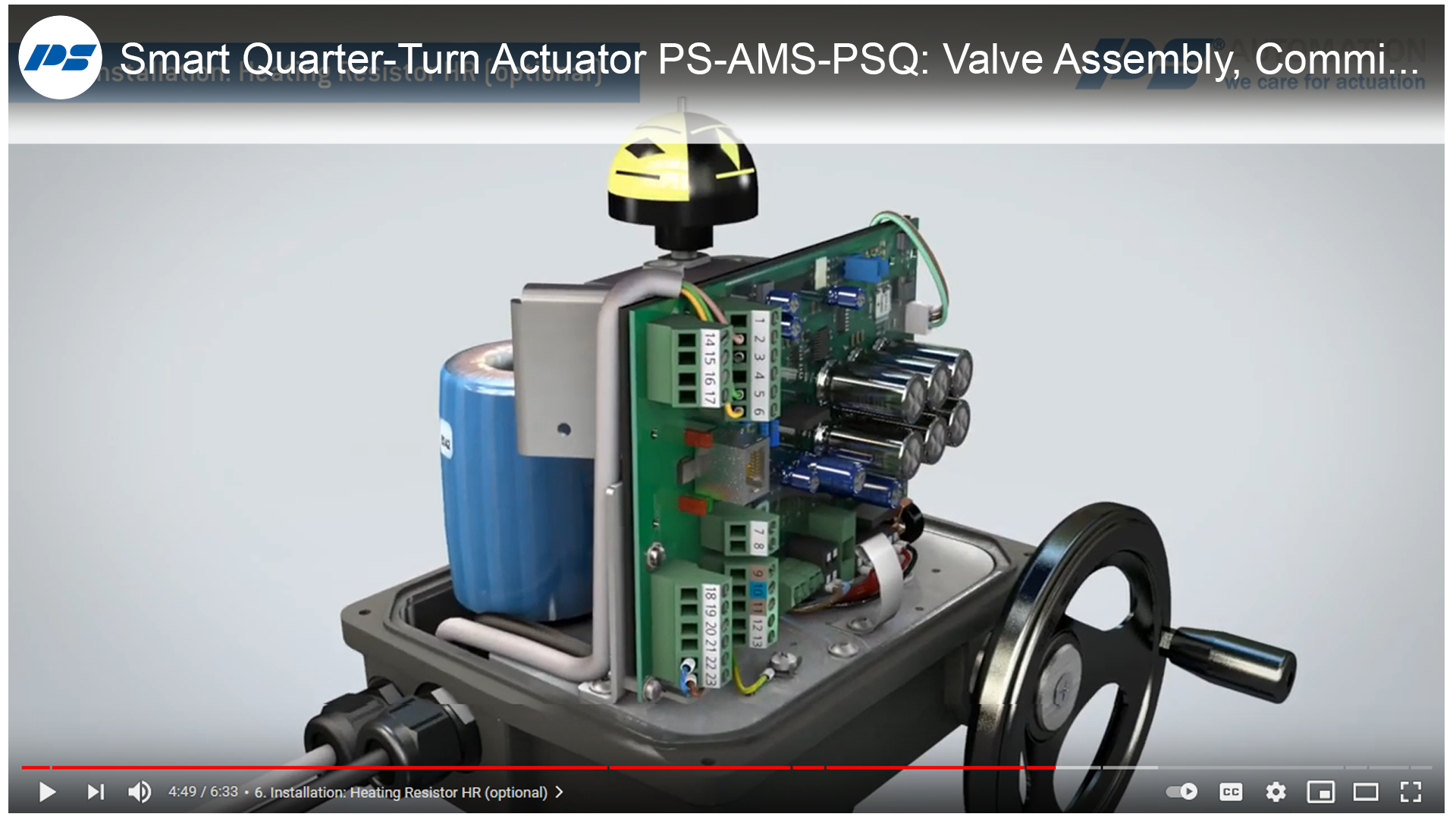

Smart Quarter-turn Actuators PS-AMS PSQ
Smart actuator solution for Quarter-turn Actuators up to 24782 lbf in
Smart actuator solution for Quarter-turn Actuators up to 24782 lbf in
PS-AMS PSQ is the patented smart actuator solution up to 24782 lbf in torque for modulating control valve applications. PS-AMS PSQ includes enhanced electronics with an embedded micro-controller with flash memory that controls and monitors the entire actuator function. Summarizing all functions on a single circuit board makes the actuator extremely compact and safe in operation. The value for money is outstanding.
A PS-AMS PSQ is installed fast due to the automated one-key commissioning.
| Article | Torque | Operating time | Flange (ISO 5211) | Power Supply |
|---|---|---|---|---|
| PSQ103/AMS11 | 1150.6 lbf in | 36 - 72 secs / 90° | F05/F07 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ103/AMS12 | 1150.6 lbf in | 9 - 18 secs / 90° | F05/F07 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ203/AMS11 | 2212.9 lbf in | 60 - 120 secs / 90° | F07/F10 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ203/AMS12 | 2212.9 lbf in | 16 - 32 secs / 90° | F07/F10 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ503/AMS12 | 4425.4 lbf in | 36 - 72 secs / 90° | F10/F12 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ703/AMS13 | 6195.5 lbf in | 70 - 140 secs / 90° | F10/F12 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ1003/AMS13 | 8850.7 lbf in | 70 - 140 secs / 90° | F12/F14 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ1503/AMS13 | 13276.1 lbf in | 110 - 220 secs / 90° | F12/F14/F16 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ2003/AMS13 | 17701.5 lbf in | 144 - 288 secs / 90° | F16 | 24/115/230/360…460 VAC and 24 VDC |
| PSQ2803/AMS13 | 24782 lbf in | 280 - 560 secs / 90° | F16 | 24/115/230/360…460 VAC and 24 VDC |
